When I was a product manager at Microsoft for Windows NT, I published a technical paper describing the level of real-time support that was built into the operating system at that time. Over the past few years, this technology brief has been referenced in several other technical papers. Some of these papers are still available from the web.

More recently, VenturCom and other vendors have added additional real-time capabilities to Windows NT.  Also, at the end of the article, I have included references to several top-rated textbooks on real-time systems.

Real-Time Systems With Microsoft Windows NT

Matthew B. Ragen
Microsoft Corporation
April 1995

Real-Time Applications

Among the many types of common applications for which computers are used, the most familiar are personal productivity applications or various business applications. There are also high performance, embedded applications that are often called upon to manage time-critical responses. These are among the most demanding of applications that not only need to respond correctly, but also need to respond within certain, specified time parameters, or in “real-time”. Some examples of these applications include:

Definition Of Real-Time Systems

There are many ways to define a real-time system. Perhaps one of the most comprehensive definitions is: “A real-time system is one in which the correctness of the computations not only depends upon the logical correctness of the computation but also upon the time at which the result is produced. If the timing constraints of the system are not met, system failure is said to have occurred.”

Practically speaking, this means that real-time applications fall into two primary groups—those that are able to respond in “hard” real-time and other “soft” real-time applications with requirements that are less severe. Simply stated, a hard real-time operating system must, without fail, provide a response to some kind of event within a specified time window. This response must be predictable and independent of other activities undertaken by the operating system on behalf of other tasks. Providing this response implies that system calls will have a specified, measured latency period. Hard real-time systems often employ specific hardware devices with special device drivers.

Using this definition, Microsoft® Windows NT™ Workstation is not a hard real-time operating system. Windows NT Workstation is a general purpose operating system that has the capability to provide very fast response times but is not as deterministic as a hard real-time system requires.

In contrast, a soft real-time operating system is one that has reduced constraints on “lateness” but still must operate quickly within fairly consistent time constraints. That is, it must be “good enough” to service events so that the response should be satisfied, on average. Windows NT meets this definition.

In summary, there are very few applications which require a true real time operating system. Most applications only need an operating system which is “good enough” to meet certain requirements. In most situations, given all the features these applications require, Windows NT is probably the best system available for most of these tasks.

Common Usage Of Real-Time Systems

In common usage, loose terminology uses real-time to refer to any system which modifies an industrial process based on measurements from that process. Many industrial processes such as job shop flow (controlling the flow of work through the factory) and inventory control are often lumped together into the “real-time” category.

Sometimes, the term “real-time” refers to a 4kb operating system that creates and schedules primitive tasks by absolute priority, responds immediately to hardware interrupts, and does very little else. This is useful for simple applications that gather instrumentation signals or control industrial processes.

This description is still often appropriate. However, a personal computer can be equipped with sophisticated adapter boards with CPU and memory instead of just data registers. Incoming data can be buffered on the physical adapter. This enables general purpose operating systems to do what the special purpose real-time systems did previously. Several features make Windows NT an extremely good general-purpose operating system for real-time applications.

Within the Microsoft Windows® family, two initiatives focus on real-time activities. Within the financial services market, where financial analysts and traders often need to know of pricing and market movements almost instantaneously, Microsoft has put together an initiative referred to as OLE for Real-Time Market Data. This initiative is designed to provide a standard way for financial professionals to get access to real-time financial data.

For scientific and manufacturing users, Microsoft has been working with a number of applications and device manufacturers to define a set of Windows interfaces that data acquisition equipment can tie into easily. This effort is referred to as Windows for Science, Engineering and Manufacturing or WINSEM for short.

Real-Time With Windows NT

Windows NT has been designed from the ground up to be a highly responsive, general-purpose operating system. To the real-time developer, this implies that there are some areas where Windows NT will not be suitable for real-time applications as a result of basic design choices made in its architecture. Topics of interest in real-time systems include:

Paradoxically, many of these design choices made within Windows NT actually result in a high level of responsiveness. This paper will discuss these important real-time topics in terms of the capabilities offered by Windows NT. For reference, there is a section in this paper that provides a high-level discussion of the Windows NT architecture.

Responding To External Events

Real-time applications are designed to respond to external events within a specified time interval. Windows NT offers strong capabilities in the areas of both interrupt management and I/O management.

Interrupts

Real-time applications use interrupts as a way of ensuring that external events are noticed by the operating system. It is critical that interrupts be handled promptly, according to their relative priority.

Within Windows NT, the kernel and the Hardware Abstraction Layer (HAL) are tuned to optimize interrupt delivery and event dispatching. The kernel provides interrupt dispatching to the rest of the system. The kernel can operate at one of thirty-two possible interrupt levels as shown in the following table; these levels help to prioritize the tasks that must be accomplished before other, less time-critical work. The kernel reserves eight interrupt levels for its own use. The remaining twenty-four interrupt levels are mapped onto hardware interrupts using the HAL.

Windows NT handles interrupts on a preemptive basis; when an interrupt occurs, all execution at lower interrupt levels is suspended and execution begins immediately on the highest-level request. Processing continues until the highest-level process has been completed. This places a responsibility on device drivers in that system responsiveness is directly related to how quickly a device driver exits its interrupt routine.

Another way to state this is that Windows NT offers applications a multilevel interrupt mask. Higher priority interrupts can occur when the interrupt mask allows them to occur. Changing the interrupt mask raises the level so that lower level interrupts can not use system resources until the handling routing for the higher level interrupt has been completed.

Multiprocessor Systems

Windows NT is designed for multi-processor systems. When an interrupt is dispatched, the kernel dispatches the interrupt to just one of the processors in the system. All other processors continue executing uninterrupted. Interrupts can be handled on any of the processors in a machine; this allows interrupts to be handled by idle processors, rather than concentrating the load on a single processor. Use of multiprocessor systems can offer significant benefits for real-time applications.

Asynchronous I/O

Asynchronous I/O is a very powerful mechanism for user-level real-time applications; the application can queue I/O and continue processing without having to either wait or respond immediately to some end-of-I/O event. Additionally, there are completion mechanisms in the I/O system (completion port I/O) that efficiently use the kernel synchronization and executive scheduling capabilities to distribute I/O completion processing to the most recently busy thread. This assures that cache is not invalidated and that the system makes efficient use of the processing power available to it. This can pay enormous dividends on multi-processor systems and have no appreciable overhead on single-processor systems.

In many cases (such as a Win32 application), asynchronous I/O may not be important and the application will wait for the I/O to complete before returning. However, in the case where the user (or kernel component) wishes to do work while the asynchronous I/O is completing, they can specify that they do not wish to wait for the request to complete and can continue working in the rest of the application. When the asynchronous I/O eventually completes, an event or some other notification mechanism will fire. The application can check for this completion event at some future time when it is convenient to do so within the application.

Device Drivers

Device drivers are very important to real-time users of Windows NT. In particular, processing in a device driver will proceed to completion without any interruptions, which is something that many real-time applications want. In order to get this kind of performance, however, the device driver code must be extremely solid. Windows NT device drivers run entirely within the system process and have access to all hardware through the HAL. A typical device driver will have several components as described in the following table.

Device drivers are very important to real-time users of Windows NT. In particular, processing in a device driver will proceed to completion without any interruptions, which is something that many real-time applications want. In order to get this kind of performance, however, the device driver code must be extremely solid. Windows NT device drivers run entirely within the system process and have access to all hardware through the HAL. A typical device driver will have several components as described in the following table.

When a device driver starts, the initialization routine will typically make the driver known to the system, register some entry points, and register an ISR. The device driver will wait, consuming only memory resources, until an interrupt occurs that meets the criteria of the driver’s ISR; the driver’s ISR is then entered. The driver will not be interrupted until the end of its interrupt service routine unless a higher level-interrupt occurs. Unlike other operating systems, an ISR on Windows NT can be interrupted by another ISR with higher priority; this is one reason that interrupt latency is hard to define for Windows NT.

When a driver is in its interrupt service routine, it should perform the minimum processing necessary to handle the interrupt, save the state necessary for processing the interrupt, queue a DPC routine for later processing that is not time-critical, and return. The DPC will occur at some later time—although it may occur immediately after leaving the interrupt service routine if the system is not very busy. DPCs will run to the exclusion of all other processing (other than ISRs) until the DPC exits. Most device driver processing is done in this deferred processing routine or at even lower priority routines queued by this DPC. A number of important rules apply to DPCs. The most important rule is that a DPC cannot wait or lock up the system. Also important is that the DPC must have all memory it accesses locked down in physical memory so that it cannot incur page faults.

It should be possible, using the support routines and driver model provided by Windows NT, to write device drivers that handle even the most complex and high speed data acquisition hardware.

Priorities And Scheduling

Real-time applications, by definition, have a time component associated with their behavior. In this context, it is important to understand how Windows NT assigns priorities to applications and schedules their execution. This section also discusses several other elements of the operating system and how their use can affect real-time applications.

Process Priority

Within Windows NT, user applications are defined as processes. Windows NT is a pre-emptive, multi-tasking operating system that allows multiple processes (i.e., applications) to run within the system at the same time. A process has a number of properties that are associated with it. For real-time applications, one of the most important properties is the priority class (such as real_time) that defines the basic priority at which the application will run. The priority model within Windows NT includes 32 priority levels of which 16 are reserved for the operating system and real-time processes as shown in the figure below. Note that priority levels are different from the dispatch interrupt levels discussed in the kernel section. User applications almost always run at interrupt level 0, regardless of the priority level they are set to.

Each process maintains a private address space to ensure that it will not interfere with other processes. Each process has a base priority class. As shown at left, real-time applications can run with a base priority class of 31 (highest priority), 24, and 16. Typically, real-time processes will run at priority 24. Other applications (dynamic classes) have base priority class of 15, 13, 9 (normal foreground process), 7, 4, 1, and 0.

Each process also has associated with it, within the same address space, one or more threads where each thread represents an independent portion of that process. The number of threads is limited only by available memory and resources. The properties associated with the process, including the priority level, are inherited by these threads.

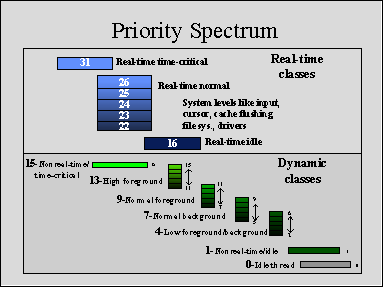

Each thread has a current priority that is derived from the process’ priority class; it may vary upward and downward within defined limits using an API call that can vary up or down from the process’ base priority. For example, a process running at real_time class 24 can have threads that run anywhere between classes 26-22 depending on their own independent priority. These threads will always  stay within the real_time priority class.

Threads are independently scheduled by the executive. A process has associated with it a quantum, which is the maximum amount of time one of these threads can execute before the system checks to see if other threads with the same priority in the system want to execute. In general, real-time processes will have priority over almost all other activities or system events. However, for processes in the spectrum of dynamic classes that are running at lower priority levels, a number of events within the system, such as I/O completion, can cause a temporary priority boost for a thread, giving it priority within a process.

Finally, there is a single system process, within which there can be multiple system threads running. This system process runs all device drivers, the kernel, the executive, and device drivers. All of these components share a single address space, called “system space”. A device driver, executive component, or the kernel can create a new system thread at any time—these threads can be used to do work in the context of the system process. This technique of running a thread within the context of the system, where it has direct access through the HAL to device hardware might be of interest to real-time engineers.

Memory Management

Memory management is another area in which many real-time engineers are interested. Windows NT is built around a virtual memory system. For real-time applications, Windows NT solves many of the problems that face real-time developers using more traditional virtual memory systems. First, paging I/O occurs at a lower priority level than the real-time priority process levels. Paging within the real-time process is still free to occur but this really ensures that background virtual memory management won’t interfere with processing at real-time priorities.

Second, Windows NT permits an application to lock itself into memory so that paging within its own process does not affect it. This allows even very large processes (such as raster image processing where some processes are over 100MB in size) to lock all of their memory down into physical memory and avoid the overhead of paging, while allowing the rest of the system to function normally.

Finally, Windows NT memory management allows memory mapping which permits multiple processes, even device drivers and user applications, to share the same physical memory. This results in very fast data transfers between cooperating processes or between a driver and an application. Memory mapping can be used to dramatically enhance real-time performance.

Cache Management

Cache management is one of the drawbacks of using a general purpose operating system such as Windows NT for real-time applications. Memory caching is a technique that uses a small amount of high-speed memory to hold the most recently used code or data. If the next instruction or piece of data is not in the cache, the CPU retrieves it from the slower main memory. Using a cache results in the best average system performance for an operating system, but it does introduce an element of timing unpredictability in real-time environments.

Synchronization Requirements

One of the most difficult tasks of real-time systems is ensuring that different threads and processes stay synchronized. That is, within a real-time application, the timing at which different activities occur is important. For example, if one part of the application completes before a second part gets the most current data, then the process that the application is monitoring may become unstable. Synchronization results from ensuring that application components are prioritized properly.

Kernel Synchronization

Most of the work in the kernel is performed at the highest software interrupt level (known as dispatch_level) or above. The kernel’s job consists primarily of synchronization of execution on multiple processors, dispatching, and system database maintenance; it does very little work that is not a direct consequence of a request by a user or subsystem.

The kernel also has a rich set of dispatch objects; these objects synchronize execution within device drivers and Windows NT executive components. Included in this set of dispatch objects are various timers, events, mutexes and semaphores. These objects can all be used in a number of ways to synchronize execution as necessary within the Windows NT executive and kernel. These objects are also used by subsystems to implement the synchronization primitives exported to user applications.

Timers

With general purpose operating systems that use virtual memory and caching algorithms, it is often difficult to ensure that events can take place within specified periods of time. Windows NT offers several timers that can be used to obtain more deterministic time intervals for managing events in real-time environments. These timers generate software interrupts from the kernel.

With Windows NT Workstation 3.5, applications can use the basic system timer with the GetTickCount() API. The resolution of this timer is 10 milliseconds. Several CPUs support a high-resolution counter that can be used to get very granular resolution. The Win32 API called QueryPerformanceCounter() returns the resolution of a high-resolution performance counter. For Intel®-based CPUs, the resolution is about 0.8 microseconds. For MIPS-based CPUs, the resolution is about twice the clock speed of the processor. You need to call QueryPerformanceFrequency() to get the frequency of the high-resolution performance counter.

Spinlocks

Another method that ensures proper synchronization is a spinlock. A spinlock is a locking mechanism associated with a global data structure that ensures that only one thread can get access to that data at any one time. Once the first thread is done, it releases the spinlock so that other threads can then get access to that data. Within Windows NT, spinlocks are often used by device drivers in order to ensure that device registers or other data structures can be accessed by only one device driver at a time. Real-time applications can use spinlocks to synchronize timing events during an interrupt response or other similar activity.

Deterministic Response Times

With real-time systems, it is important to understand how quickly the operating system can respond to external events. The more deterministic the operating system can be, the more suitable the system will be for real-time applications.

Latency

To process an interrupt, three steps are generally taken. First, is the hardware interrupt latency. This represents the time that it takes for the CPU to finish processing the current instruction, flush the instruction pipeline, read the interrupt vector, locate the address of the Windows NT trap handler, and jump to that address.

Second, the trap handler records the current machine state and creates a trap frame that records the execution state of the thread that was interrupted including program counters, registers, and other information. At this point, the trap handler starts an interrupt dispatcher which determines the source of the interrupt and then transfers control to an external routine, called an Interrupt Service Routine (ISR), or to an internal kernel routine. The ISR is provided by the device driver for the particular device that caused the interrupt.

Finally, at this point, the ISR starts an I/O transfer to or from the device and executes other threads while the device completes the transfer. When the transfer is complete, the device again interrupts the CPU for service.

Frequently, in real-time environments, latency refers to the total time that it takes for these steps to occur—that is, the amount of time that it takes for the CPU to acknowledge and handle an interrupt.

Sample measurements

In a recent paper delivered at the 1995 Digital Communications Design Conference, the ability for Windows NT to handle real-time activities was measured. These measurements were designed to understand the appropriateness of using Windows NT as a platform for a TCP/IP router.

The paper concluded that Windows NT was appropriate for use as a real-time system. Basic measurements reported in the paper are listed in the table at above. The primary discrepancy in the overall duration of the event was attributed to effects of virtual memory and, in particular, the cache manager.

Windows NT Operating System Overview

Windows NT is an operating system that is based on design principles often referred to as a microkernel architecture. In order to ensure higher levels of performance, the design time for Windows NT modified the microkernel design by eliminating the clearly defined break between the kernel code and other system components. In most cases, this distinction is not significant and users get the benefit of a microkernel design with better performance.

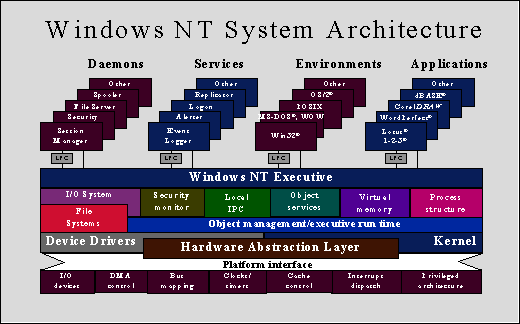

The basic architecture of Windows NT uses a layered design composed of a number of components that are working in concert to provide the basic services that a user or application need to accomplish their tasks. Working from the inside out, these components are: the kernel, the hardware abstraction layer, the executive, device drivers, and environment subsystems. The picture at left displays an architectural diagram of Windows NT.

The Kernel

The kernel is the core of the Windows NT operating system. It is a dispatcher, not a scheduler, and is responsible for handling events within the system. Note that this process is very complex and it’s difficult to characterize specific performance numbers for interrupt delivery time or dispatch timing. The Windows NT kernel is fairly lightweight—it efficiently performs a limited set of functions, freeing CPU cycles for other processing. These functions would be of little interest to a traditional application program; for instance, the kernel neither knows nor cares about file I/O. Still, the primitives offered by the kernel are the foundation of the operating system services used by applications.

Hardware Abstraction Layer (HAL)

Windows NT is designed to run with a variety of CPUs and hardware platforms. This places a heavy burden on the kernel to efficiently reconcile kernel processing with the need to handle interrupts, cache management, memory handling, register assignments, and other hardware-specific implementations. To solve this portability issue, Windows NT isolates the kernel code from the hardware using an isolation layer referred to as the Hardware Abstraction Layer or HAL. The HAL presents a “virtual machine” to the kernel, executive, and device drivers. It maps this virtual machine onto the underlying hardware in an efficient manner and eliminates the need for Windows NT to provide hardware specific kernels, which improves overall efficiency. The HAL presents a single mechanism for device driver and kernel components to use on any hardware platform.

The Windows NT Executive

The Windows NT Executive provides services that allow the operating system to perform operations that may span various systems or managers and kernel operations. It provides services to user applications, subsystems, and some device drivers. The executive includes many systems and managers, each of which fulfills a particular function. In traditional mini-computer operating systems these services are known as system services. In Windows NT, major systems include: the Cache Manager, Security Monitor, Object Manager, network access, and other functions. The I/O management and process management routines are probably of most interest to real-time engineers.

The I/O system has a rich set of I/O operations that are exported to other components. These operations range all the way from traditional, synchronous buffered read-and-write operations up to high speed buffer-mapped asynchronous I/O operations. Except for creation of the I/O channel itself, all internal I/O operations in Windows NT are asynchronous—that is, they are not expected to be complete upon return from the I/O operation request. This is a major break from mainstream operating systems, and is a major reason for Windows NT’s responsiveness to user inputs and interrupts.

Within Windows NT, user applications are defined as processes. Windows NT is a pre-emptive, multi-tasking operating system that allows multiple processes (i.e., applications) to run within the system at the same time. A process has a number of properties, including the priority of the process, that are associated with it. Each process maintains a private address space to ensure that it will not interfere with other processes. Each process has associated with it, within the same address space, one or more threads where each thread represents an independent portion of that process. Threads are independently scheduled by the executive based on their priority.

There is also a single system process that runs all device drivers, the kernel, and the executive. These components share a single address space. A device driver or the kernel can create a new system thread at any time. This technique of running a thread within the context of the system, where it has direct access through the HAL to device hardware might be of interest to real-time engineers.

Device Drivers

Device drivers in Windows NT are kernel-level code that extend the capabilities of the kernel and executive to control new devices or, in some cases such as File Systems, that provide new services to user-level components. Generally, these services are very constrained and consist of nothing more than the ability to use a new device of an already supported kind. However, device drivers for totally new types of devices can be written and integrated into the system. Windows NT also has a rich set of DMA handling support routines; it is beyond the scope of this paper to go into them in any depth, but they support conventional DMA as well as scatter-gather DMA.

Environment Subsystems

Subsystems in Window NT are used to provide user environments for applications. Examples of Windows NT subsystems are the Windows 32 subsystem and the POSIX subsystem. Each of these subsystems provides a set of primitives that are specific to that user environment, built upon the primitives provided by the Windows NT executive and kernel.

Common Questions

Q. What kind of interrupt latency does Windows NT provide?

A. Interrupt latency is a function of the drivers that are running and what they do at interrupt time. The Windows NT design philosophy encourages drivers to do as little work as possible. The kernel architecture generally let’s a driver do a very small amount of work at interrupt time and use a DPC (deferred procedure call) to do driver related processing at a lower IRQL. This design allows for very short interrupt service routines and results in reduced interrupt latency.

Q. Can the kernel respond to an interrupt while actually executing kernel code?

A. Yes, although there are some spots where the IRQL level is raised or where interrupts are disabled. In general, the kernel is not preemptible, but interrupts can and do happen during execution of the kernel. The rules for interrupts are very similar to other systems. Windows NT has a multilevel interrupt mask. Higher priority interrupts can occur when the mask allows them to occur. Changing the mask raises the level where lower level interrupts can not occur.

Q. Does Windows NT have a fixed priority scheduler?

A. Windows NT supports 32 priority levels which can be assigned to particular threads. Sixteen of these priority levels are variable; that is, the scheduler adjusts your priority up and down as events occur. Sixteen levels are fixed priority or "real-time" where the operating system cannot adjust the priority level. The Win32 API allows access to both the variable and fixed priority classes and to most of the 16 priorities in each level.

Q. Does Windows NT support asynchronous I/O?

A. Yes. Windows NT provides three different completion notification mechanisms allowing for a very flexible approach to using asynchronous I/O.

Q. Does Windows NT wait for a clock tick before it responds to an interrupt?

A. Assuming that interrupts are not disabled or masked at that level, the system handles the interrupt immediately.

Q. Does Windows NT support a real-time or contiguous file system?

A. With file systems, the bulk of the performance cost occurs when a file needs to grow. With the NTFS file system, Windows NT can preallocate space to files although it is not strictly contiguous. The RAW file system provides unstructured storage on an unformatted disk volume so that the application itself can control the contents of the file system.

Q. Does Windows NT support memory locking?

A. Windows NT allows an application to control the size of its working set. An application can lock memory into its working set.

Q. Does Windows NT support direct I/O and memory access?

A. In general, Windows NT does not allow an application access to I/O ports directly. If this is needed, a driver needs to be written.

Where To Get More Information

Helen Custer, Inside Windows NT, Microsoft Press, 1992.  In addition to 1:1 discussions with the Windows NT developers, this was my primary written reference for background on the Windows NT operating system and its internals.  The first edition is out of print; the Second Edition of Inside Windows NT is now available.

Brian Catlin, Design of a TCP/IP Router Using Windows NT, a paper presented at the 1995 Digital Communications Design Conference, Catlin & Associates, Redondo Beach, CA.

Notes:

Note 1: This definition of real-time was located (in 1995) in the real-time FAQ in the Internet’s comp.realtime news group.

Note 2: Brian Catlin, Design of a TCP/IP Router Using Windows NT. Mr. Catlin is a principal at Catlin & Associates in Redondo Beach, CA. The firm’s primary business is systems analysis and programming.

Note 3: The system being measured was a Hewlett-Packard XU 5/90 personal computer with one 90 MHz Pentium CPU, 256kb synchronous cache, 16 MB memory and 540 MB of disk space. Measurement test equipment included various Hewlett-Packard systems.

Note 4:  This article is still available in its entirety as part of the MSDN subscription services at http://msdn.microsoft.com/library/backgrnd/html/msdn_realtime.htm.

Finally, there are a number of books on the topic of real-time systems, programming and related topics. I didn't use these as references; instead, I worked directly with the OS developers. Nonetheless, these books seem to offer a range of practical experience that may be useful in learning more about this topic.
